ESE Tester to test whether ESE lightning rods work.

• Overview:

TSTLP ESE tester, in accordance with Early Streamer Emission principle of ESE lightning rod and Simulation Test Process of examing ESE lightning rod, press μA current on electric colleting point of lightning rod and upper terminal impluse, imitate ESE lightning rod's working process in the atmosphere before lightning happens to make ESE lightning rods gap-discharging on top end, then to test function of ESE lightning rods.

• Features:

Power supply       : 220 Vac/12Vdc transformer Supply.
Electrode              : ESE lightning rods has different electrode features, this test equipment can
                                 transform positive & negative electrode features automatically so as to finish
                                 examination automatically.

Loop examination   : This Equipment could test correctness of inside lightning rod loop
                                      By indication lamp.

Electro-discharging Examination: By observing voltage electro-discharging phenomenon through this
                                                              test equipment.

Operation instructions:
1. FRONT PANEL

1.Power Indicating Lamp
2.Power Switch
3.Test Button
4.Loop indication.
5.Test Progress Adjustment
6.Output Electrode
7.Output Electrode

2. BACK PANEL

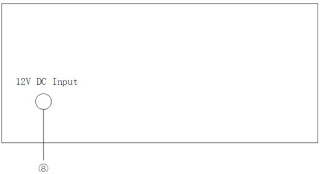

8.（12VDC)  12V DC Input
Operation Procedures:

• Connect output electrode to ESE lightning rod.
• Switch Power on, lamp on.
• Press TEST Button, Loop lamp flashing.
•  Observing upper gap, electro-discharging phenomenon happens or light "BB" sound being heard.
• Note: Before test, press TEST button to see whether lamp on green to make sure ESE
  tester works. If fail, lamp goes red.

Test Flow Chart

Attention:
1,  It's forbidden to touch any part of ESE lightning rod during test.
2,  Test must be proceeded in dry environment, NOT allowed to test when moisture
more than 95%.
